Enabling discovery debugging

You may be asked by Bravura Security support to enable discovery debugging to help troubleshoot issues with discovery. The iddiscover service can archive copies of table contents at specific phases of discovery based on settings in the instance registry. These table archives can then be used to gain insight into where issues might be occurring during what would otherwise be an opaque discovery process. This topic shows you how to enable this functionality.

To get started, you need to identify a set of tables and a set of stored procedures or plugin points that need to be debugged. Generally, you will receive this set from Bravura Security support. A new registry key will need to be created and a series of values created under it.

Requirements

You will need access to the registry on the primary instance server.

Construct the strings you will need

You will need to create potentially a series of strings. This section discusses how the strings are constructed and their meaning. It provides a concrete example: the stored procedure ObjMerge , the tables targetobj and targetobjattr , and an account named administrator .

The string format is <tablename>|<when>|<filter>, for each table, where:

  • tablename is the name of the table

  • when is one of BEFORE, AFTER, or BOTH, representing whether a copy of the table will be archived before or after (or both) the stored procedure runs

  • filter is an optional dynamic SQL expression that can be used to filter the data to be archived. If the expression compares a string literal, the string literal should be enclosed by two apostrophes (not double quotes). If no filter is to be used, leave this section empty but keep the | character

Thus the example produces two strings:

targetobj|BOTH|accountname=''administrator''
targetobjattr|BOTH|accountname=''administrator''

If no filter is to be used, the strings would instead be:

targetobj|BOTH|
targetobjattr|BOTH|
Add registry entries

Create the registry entries and run a discovery that will trigger the problem being troubleshooted:

  1. Go to the Windows registry editor (regedit)

  2. Expand HKEY_LOCAL_MACHINE\SOFTWARE\Hitachi ID\IDM Suite\<instance>\iddiscover

  3. Create a new key called archive_tables if it doesn't exist already

  4. Inside this key, create a new multi-string value for each stored procedure or plugin point. The name of the value should be the stored procedure or plugin point

  5. Add the strings constructed in the previous section to the multi-string value

  6. Repeat for each stored procedure or plugin point

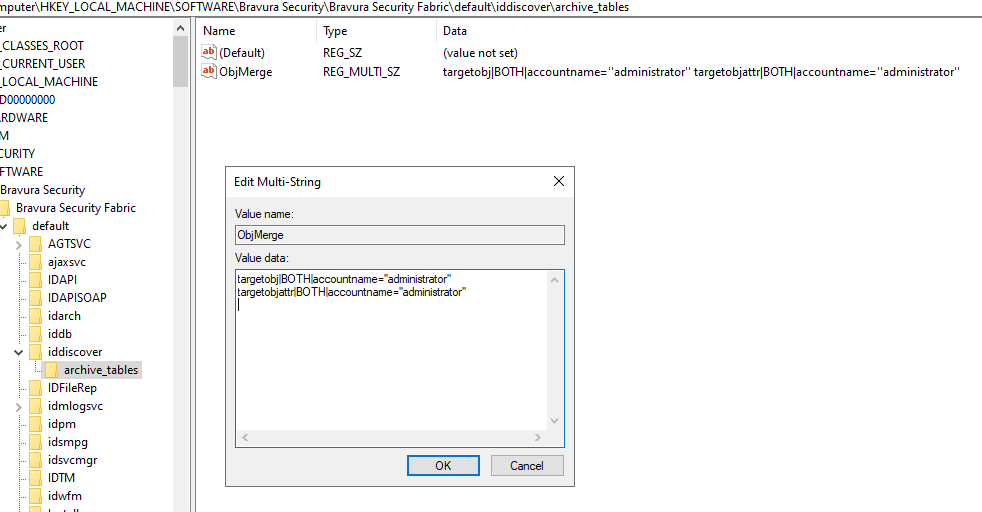

    archive_tables
Run discovery and retrieve results

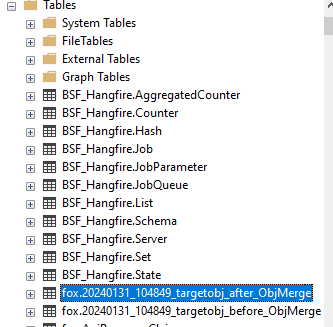

Run the discovery that is exhibiting the issue you are troubleshooting (this is typically psupdate ). If all goes well, there will be new archive tables in your database:

objmerge_tables

Retrieve the contents of these tables and relay them to your Bravura Security support agent.

Remove registry entries

While the registry setting is in place, every discovery will trigger the creation of new archive tables. This includes discoveries from pre-defined request scripts or the Local Workstation Services which may be quite numerous. Try to keep the registry setting in place for the smallest possible timeframe, by setting it, manually running psupdate , retrieving the archive tables, and then unsetting it. Leaving the setting in place for a long time may result in the creation of many archive tables. To mitigate this effect somewhat, Bravura Security Fabric will automatically delete an archive table if it is empty. If your filter is overly selective or incorrectly specified, you may not see any archive tables after a completed discovery.
