Automated node check when using a load balancer

In addition to the manual process of checking the replication status, Bravura Security Fabric also presents a web-based interface that can be used to determine the status of each application node.

The application installer adds an IIS URLRewrite rule that redirects the load balancer endpoint, https://<domainname>/<instance>/api/nodestatus to cgi-bin\nodestat.exe. This CGI parses psconfig\nodestat.cfg to determine what application health verifications to run, and uses those settings to execute loadbalancerstatus.exe, which performs the actual checks.

That load balancer endpoint returns HTTP codes:

  • 200 OK when all checks pass, or

  • 503 Unavailable when at least one check fails, or

  • 500 Internal server error when something is wrong with the IIS configuration.

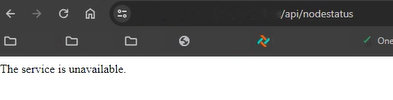

For example when the code 503 is returned, the message The service is unavailable is displayed in the browser:

nodestatus

The list of tests to run is configured via nodestat.cfg , located at <Program Files path>\Bravura Security\Bravura Security Fabric\<instance>\ psconfig. Most tests are enabled by default, and can be enabled or disabled individually by marking the item as a comment.

Bravura Security Fabric also monitors the performance of Internet Information Services (IIS). When a request takes longer than a threshold, it may mean that IIS has timed out waiting for result and returned an error to the caller. If this happens a lot, that means this server is overloaded. API nodestatus will return 503 and this server will be taken out of the load balancer.

Timeout threshold is defined by a DWORD key in ajaxsvc registry: timeout_threshold_ms .

ajax_max_timeouts and ajax_timeout_minutes are defined in nodestat.cfg. These let you configure how many timeouts in the last certain number of minutes are allowed before nodestat starts complaining.

The loadbalancerstatus tool doesn't log at default (Info) level the successes, when everything works as expected. It logs only errors, when a service or some other configured load balancer check fails. That doesn't allow verification of whether the load balancer is actually checking the application node via its nodestatus endpoint, or how often.

To do that, and collect both the successes and failures, there are two options:

  • Increase logging to the utility to debug level, which will log a lot more detail on each endpoint invocation:

    psdebug -level 5 -prog loadbalancerstatus

  • Enable the configurable option to log entries to an SQLite database (that will grow fast in size, and would have to be trimmed manually and regularly so it doesn't grow unlimited).

Variable

Description

$Services

A group of tests that confirm that the given service is running. Note that iddb and ajaxsvc must be running for any node status test to succeed.

  • iddb

  • ajaxsvc

  • idarch

  • idwfm

  • idpm

  • msgsvc

Disk

Returns success if the node’s replication queues have not hit the high water mark.

Ping

Calls the ping stored procedure to confirm that the database can be contacted.

db_commit_suspend

Returns success unless this node has suspended database commit operations, which typically occur during resynchronization or when a replication queue has become full.

Record = nodestat.db

Enables recording test results to a database flatfile, and defines the name of that file. This database is automatically written to the <instance>\db\nodestatus directory.

ajax_max_timeouts = 10

Number of ajax timeouts to watch for.

ajax_timeout_minutes = 5

How many minutes to observe ajax timeouts in

Plugin = "loadbalancerstatus.py"

Calls the plugin located at <instance>\plugin to evaluate this node’s status. Returns success if the plugin succeeds.

See also

loadbalancerstatus
