Example: Delegate a single request

This example assumes that:

  • Bravura Workforce Pattern and Connector Pack are installed.

  • There is an Active Directory target system set up as a source of profiles.

  • The Active Directory target is configured to create the OrgChart based on the manager attribute.

  • User Adam is the manager of the IT-DB-READWRITE group.

  • The Scenario.im_corp_delegate_filter_orgchart component is installed. This component provides functionality which filters the list of available users who may be delegated authorization authority based on their level in the OrgChart.

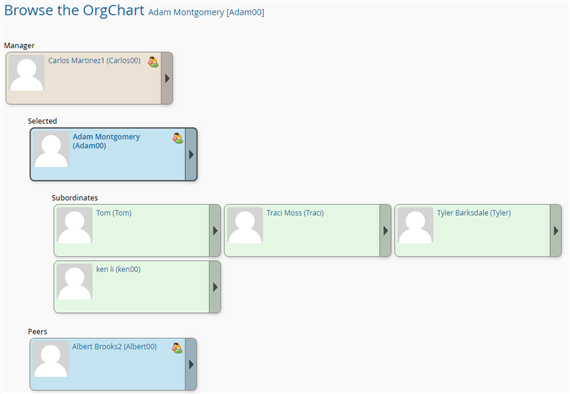

  • The OrgChart looks something like the following:

    Scenario.im_corp_delegate_filter_orgchart component
Delegate a single request

Login as Debbie to request to join the IT-DB-READWRITE group.

  1. Log in to Bravura Security Fabric as Debbie.

  2. Click View and update profile in the My profile section.

  3. Click Change group membership near the bottom of the page.

  4. Search for and check the box for the IT-DB-READWRITE group.

  5. Click Submit.

Adam is the authorizer. Login as Adam, then check the request and search for a possible delegate. With Scenario.im_corp_delegate_filter_orgchart component installed, when searching for the possible delegate, you will find only his manager and peers are listed.

  1. Log in to Bravura Security Fabric as Adam.

  2. Click the There are 1 request(s) awaiting your approval link or click Requests in the Requests section.

    The Requests app opens.

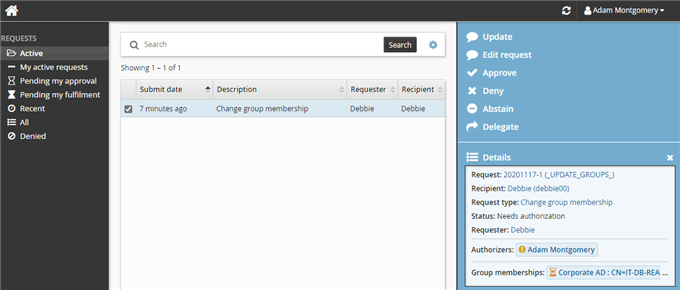

    delegate-single-request

  3. Click the request and click Delegate.

  4. Search for the Delegate.

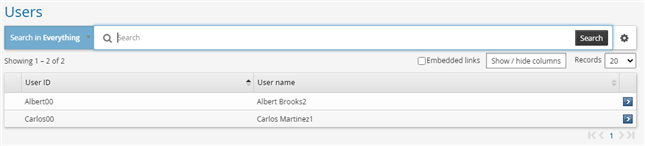

    delegate-user-filter

  5. Select Carlos.

  6. Set the following options:

    • Ask the delegate before starting Unselected

    • Allow further delegation Uselected

    • Reason Please review the request

  7. Click Update.

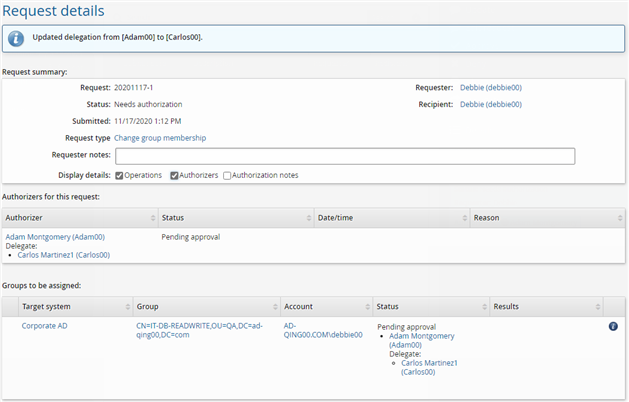

If you view the request details you should see the request requires authorization from Carlos as a delegate for Adam.

delegate-manager
Approve the request

  1. Log in to Bravura Security Fabric as Carlos.

  2. Click the There are 1 request(s) awaiting your approval as a delegate link or click Requests in the Requests section.

    The Requests app opens.

  3. Select the checkbox next to the request.

  4. Click Approve.

  5. Type Approved in the box provided.

  6. Click Approve.

Verify the request is processed

  1. Log in to Bravura Security Fabric as Debbie.

  2. Click View and update profile in the My profile section.

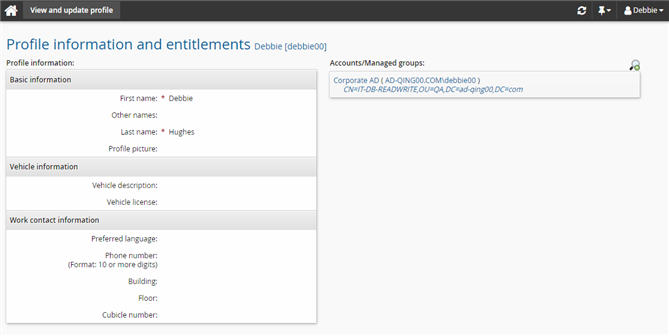

  3. Check Debbie’s Accounts/Managed groups.

    delegate-proceed
