Proxy tunnel status indicators

Problem

A proxy tunnel displays a "Warning" status on the Manage the system > Resources > Proxy tunnel clients page when it is not connected to all nodes.

Cause

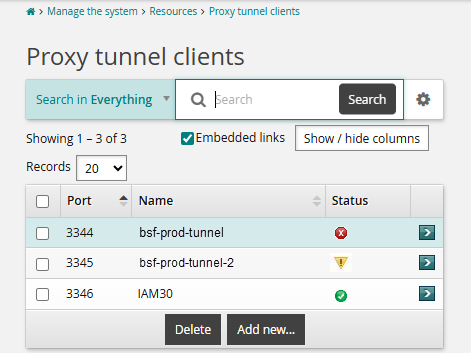

The Proxy tunnel clients page displays icons to indicate the proxy tunnel client status:

  • Green icon successicon.png: Connected to all nodes

  • Yellow icon warningicon.png: Not connecting to node(s) <node list>

  • Red icon failicon.png: Two possible error conditions:

    • Not connected: not connected to any node

    • No password has been assigned: This is a configuration issue. A password is required. Click Generate password to resolve.


Bravura Security Fabric does not allow for all nodes to connect to all proxies simultaneously.

  • Each node may only be connected to one proxy at a time

  • Each proxy could have any number of nodes connected to it

Intermittent network issues may also cause yellow status conditions.

Known issue

In current versions of Bravura Security Fabric (12.6+), when using multiple tunnels, the status indicator behaviour will display the yellow icon for all tunnels. This is because each Bravura Security Fabric node/instance can only connect to one tunnel at a time; thus, the tunnel status check sees the tunnel is not connected to all nodes and presents a warning indicator. This is somewhat misleading and will be clarified in future releases.

As long as each node is connected to a proxy tunnel, the system is functioning as intended. However, red icon indicators should always be investigated and treated as an issue.

Solution

Confirm that the Proxy Service is running on each proxy server. As long as each node is connected to a proxy, the system is functioning as intended.

When the proxy client displays a yellow or red status due to node connectivity issues, the primary solution is to repair the proxy client by running the Bravura Security Fabric proxy server installer and using the Repair option.
